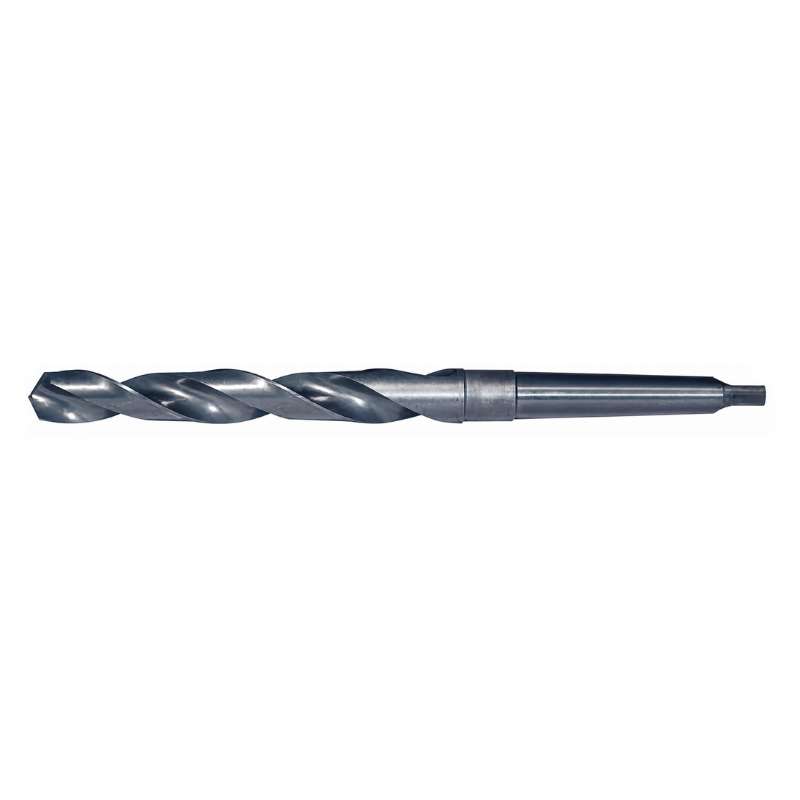

Somta Series 204 – 33.5mm HSS Morse Taper Shank Drill MT4 DIN 345

The Somta Series 204 Morse Taper Shank Drill is designed for precision drilling in heavy-duty industrial machining, engineering workshops, fabrication, and maintenance applications. Manufactured from premium high speed steel, this drill offers excellent wear resistance, durability, and dependable drilling performance across a wide range of materials.

Produced to DIN 345 standards, the drill features a Morse Taper No. 4 shank for secure machine fitment, improved rigidity, and stable drilling performance during large diameter drilling operations. The 118° thinned point geometry improves centering accuracy, lowers drilling pressure, and enhances chip evacuation for smoother and more efficient drilling.

Key Features & Benefits

• Somta Series 204 Morse taper shank drill
• Part Number: 2043350
• Drill Diameter: 33.5mm
• Drill Diameter (inch): 1-5/16"
• Morse Taper Shank: MT4

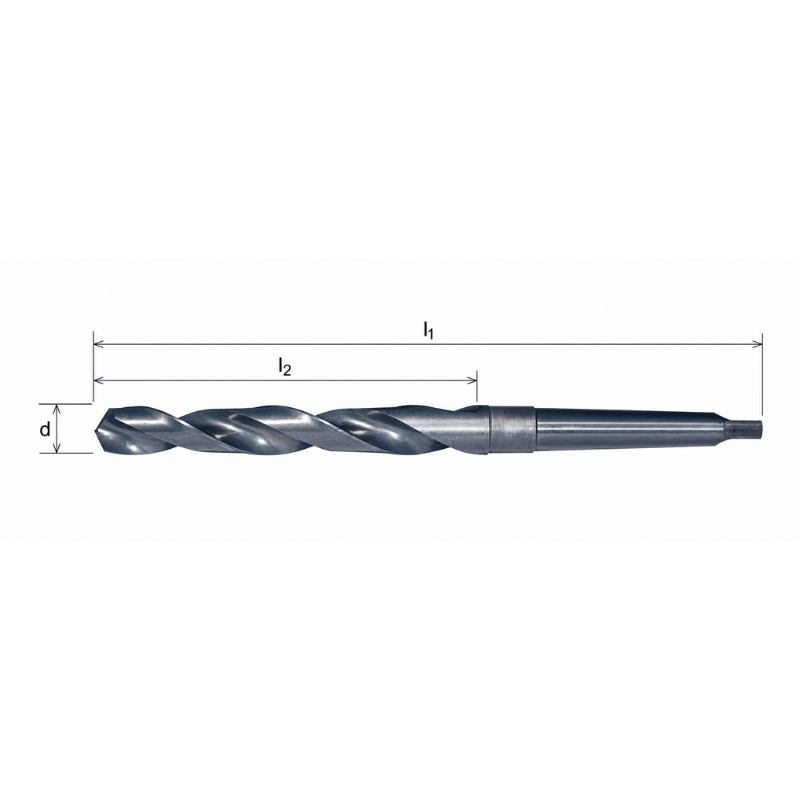

• Overall Length (l1): 334mm
• Flute Length (l2): 185mm
• Manufactured from premium HSS
• 118° thinned point for improved drilling accuracy
• Type N general-purpose drill geometry
• 30° helix angle for efficient chip evacuation
• Bright finish shank and point
• Excellent rigidity for industrial drilling applications
• Manufactured to DIN 345 standards

Technical Specifications

• Brand: Somta
• Series: 204
• Tool Type: Morse Taper Shank Drill
• Diameter: 33.5mm
• Diameter (inch): 1-5/16"
• Morse Taper Size: MT4
• Overall Length: 334mm
• Flute Length: 185mm
• Material: HSS
• Point Angle: 118°
• Helix Angle: 30°
• Drill Type: Type N
• Standard: DIN 345
• Finish: Bright finish shank and point
• Code: 2043350

Somta cutting tools are internationally recognised for their precision engineering quality, dependable machining performance, and long-lasting durability in demanding industrial environments.

Please ensure tooling specifications are suitable for your machine and application prior to purchase.
